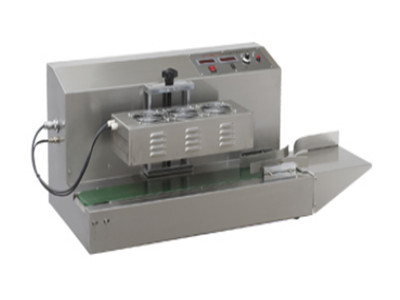

Transistor air-cooled desktop induction sealing machine
You are here: Home» Products » Equipment

Transistor air-cooled desktop induction sealing machine

The characteristics and scope of application::
Characteristics and scope of application: this series of machine is a transistor control circuit, its characteristic brother dry low cost, simple operation, easy to use. Mainly used for plastic bottle with screw thread, glass and other non-metallic bottle of bottle of induced membrane sealing operation. Applicable to large, medium batch continuous sealing work. Not appropriate in acid. Alkalinity. High humidity and dust more bad environment (such as pesticides. Beverage manufacturers, etc.) used for a long time. This series of models for stand-alone operations only, not appropriate connection used on assembly line.

OnLine Service:

E-mail Us PDF Download
【Prev Products】 【Next Products】
Share to:

Description

Specifications
Voltage : AC220V±10% 50Hz
Power : 1800 ( W )
Working Current:≤9 ( A )
control circuit : Digital transistor circuit
manner of working: Continuous conveying
Cooling mode : Forced cooling fan
The case material : stainless steel board
Sealing diameters :φ20~φ130 ( mm )
Bottle Height : 40~300 ( mm )
Sealing Speed: 0~12 ( m/min )
Size of Machine :115×56×40 ( cm )
Net Weight: 42 ( kg )
